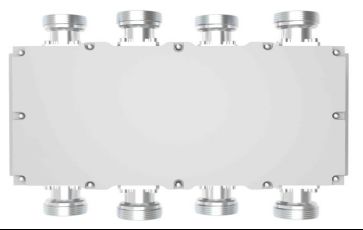

2550-4960MHz 4:4 DIN Female Hybrid Combiner
  • nama

2550-4960MHz 4:4 DIN Female Hybrid Combiner

MOQ: 5 buah
harga: negotiable
Metode Pembayaran: D/A, L/C, D/P, T/T
Kapasitas Pasokan: 60 buah per hari
Informasi Detail
Deskripsi Produk
Informasi Detail
Tempat asal
Tiongkok
Nama merek
Vinncom
Sertifikasi
ROHS ISO9000
Nomor model
VN-HC4x4-2550-OD-xxx
Frekuensi:
2500-4960
Konektor:
DIN Wanita
ROHS:
Kepatuhan
VSWR:
1.3
Deskripsi Produk

2550-4960MHz 4:4 DIN Female Hybrid Combiner



  • Good VSWR at all ports
  • High isolation
  • ROHS Compliance


Part Number VN-HC4x4-2550-OD-xxx
Operating Frequency ( MHz ) 2500-4960
Impedance ( Ohm ) 50
VSWR 1.30
Coupling (dB) 6.1
Insertion Loss (dB) ±1.2
Isolation (dB) 20
Application Indoor & Outdoor
Degree of Protection IP65
Operating Temperature ( ℃ ) -40 ~ + 80
Interface DIN Female
Handling Power (Watt, max) 500
Peak Power (Watt, max) 1500
Dimension (mm)(L×W×H, excl connector) 200*85*55
ROHS Compliance Yes



2550-4960MHz 4:4 DIN Female Hybrid Combiner 0


A Quad-Band Combiner is a specialized RF (Radio Frequency) device designed to combine or distribute signals across four different frequency bands into a single transmission line or antenna system. It optimizes signal efficiency while minimizing interference, making it essential in multi-band wireless communication systems.

The Quad-Band Combiner employs passive filtering technology (e.g., cavity filters or duplexers) to isolate and merge signals from the four bands. Each input port is tuned to a specific frequency range, while the combined output maintains low insertion loss and high isolation between bands. This prevents cross-interference and ensures signal integrity.

In a cellular tower, a quad-band combiner allows a single antenna to transmit/receive GSM (900MHz), LTE (1800MHz), and 5G (3.5GHz) signals simultaneously.
