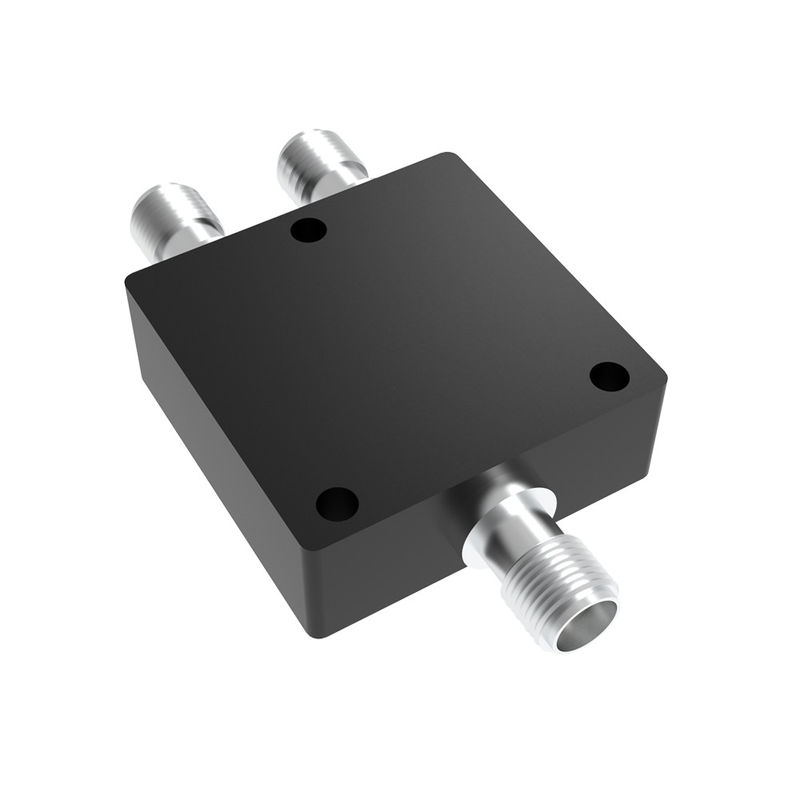

3G Resistive Antenna Power Divider 2 Way Aerial Splitter 50 Ohm

Name: 3G Resistive Antenna Power Divider 2 Way Aerial Splitter 50 Ohm
Brand: HeFei Vinncom Electronic Technology Co.,Ltd.
SKU: VN-PD-3G-OX2
Price: 414.00 USD
Availability: InStock

Rincian Produk

Tempat asal: Cina

Nama merek: Vinncom

Sertifikasi: RoHS/ISO9000

Nomor model: VN-PD-3G-OX2

Ketentuan Pembayaran & Pengiriman

Kuantitas min Order: 5pcs

Harga: negotiable

Kemasan rincian: busa+kotak

Waktu pengiriman: 2-4 minggu

Syarat-syarat pembayaran: T/T, Western Union

Menyediakan kemampuan: 50pcs per hari

Dapatkan Harga Terbaik

Hubungi sekarang

Spesifikasi

Deskripsi

Spesifikasi

Menyoroti:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                    3G Antenna Power Divider, Resistive Antenna Power Divider, 50 Ohm splitter udara 2 arah


Operating Frequency ( GHz ):	DC-3G	Impedance( Ohm ):	50
VSWR(Input Port):	≤1.20	VSWR(Output Port):	≤1.20
Insertion loss:	≤6.8	Average Power (Watt max.):	2W
Isolation(dB):	≥5.6	Amplitude Balance(dB):	±0.3

Operating Frequency ( GHz ):	DC-3G
Impedance( Ohm ):	50
VSWR(Input Port):	≤1.20
VSWR(Output Port):	≤1.20
Insertion loss:	≤6.8
Average Power (Watt max.):	2W
Isolation(dB):	≥5.6
Amplitude Balance(dB):	±0.3

Deskripsi

3G Resistive Antenna Power Divider 2 Way Aerial Splitter 50 Ohm

3G 2 Way 50 Ohm Resistive Power Divider SMA Wanita

VSWR yang bagus.
Isolasi tinggi
Kurangnya Kerugian Penempatan

Nomor Bagian	VN-PD-3G-OX2
Frekuensi operasi (GHz)	DC-3G
Impedansi (Ohm)	50
VSWR ((Port Masuk)	≤ 1.20
VSWR ((Port Output)	≤ 1.20
Kerugian penempatan	≤ 6.8
Daya rata-rata (Watt max.)	2W
Isolasi (dB)	≥ 5.6
Amplitude Balance (dB)	± 0.3
Suhu operasi ((°C)	-35 ~ + 75c
Antarmuka	SMA Wanita
Toleransi dimensi ((mm)	± 0.5
Pemasangan	3-Φ2,7mm lubang tembus (SMA)
