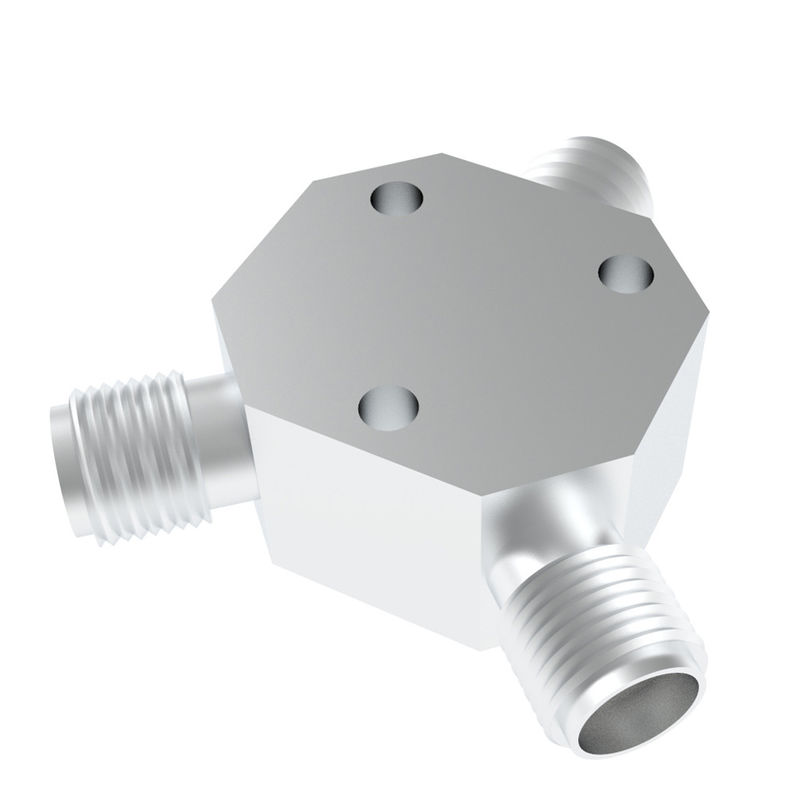

40G 2W RF Frekuensi Antenna Power Divider Konektor Wanita 2.92mm

Name: 40G 2W RF Frekuensi Antenna Power Divider Konektor Wanita 2.92mm
Brand: HeFei Vinncom Electronic Technology Co.,Ltd.
SKU: VN-PD-40G-2.92-2W
Price: 414.00 USD
Availability: InStock

Rincian Produk

Tempat asal: Cina

Nama merek: Vinncom

Sertifikasi: RoHS/ISO9000

Nomor model: VN-PD-40G-2.92-2W

Ketentuan Pembayaran & Pengiriman

Kuantitas min Order: 5pcs

Harga: negotiable

Kemasan rincian: busa+kotak

Waktu pengiriman: 2-4 minggu

Syarat-syarat pembayaran: T/T, Western Union

Menyediakan kemampuan: 50pcs per hari

Dapatkan Harga Terbaik

Hubungi sekarang

Spesifikasi

Deskripsi

Spesifikasi

Menyoroti:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                    40G Antenna Power Divider, RF Antenna Power Divider, 40G rf frequency divider


Operating Frequency ( GHz ):	DC-40G	Impedance( Ohm ):	50
Input VSWR:	≤1.50	Output VSWR:	≤2.50
Insertion loss:	≤7.5	Average Power (Watt max.):	2W
Isolation(dB):	≥9	Amplitude Balance(dB):	±0.5
Phase Balance:	±5°	Interface:	2.92mm Female

Operating Frequency ( GHz ):	DC-40G
Impedance( Ohm ):	50
Input VSWR:	≤1.50
Output VSWR:	≤2.50
Insertion loss:	≤7.5
Average Power (Watt max.):	2W
Isolation(dB):	≥9
Amplitude Balance(dB):	±0.5
Phase Balance:	±5°
Interface:	2.92mm Female

Deskripsi

40G 2W RF Frekuensi Antenna Power Divider Konektor Wanita 2.92mm

40G 2W 2 Way Resistive Power Divider 2.92mm Konektor Wanita

VSWR yang bagus.
Band lebar
Isolasi tinggi

Nomor Bagian	VN-PD-40G-2.92-2W
Frekuensi operasi (GHz)	DC-40G
Impedansi (Ohm)	50
Input VSWR	≤ 1.50
Output VSWR	≤ 2.50
Kerugian penempatan	≤ 7.5
Daya rata-rata (Watt max.)	2W
Isolasi (dB)	≥ 9
Amplitude Balance (dB)	± 0.5
Keseimbangan Fase	± 5°
Suhu operasi ((°C)	-35 ~ + 75c
Antarmuka	2.92mm Wanita
Ukuran	17.515.810mm
Toleransi dimensi ((mm)	± 0.5
Pemasangan	3-Φ2.2mm lubang tembus
