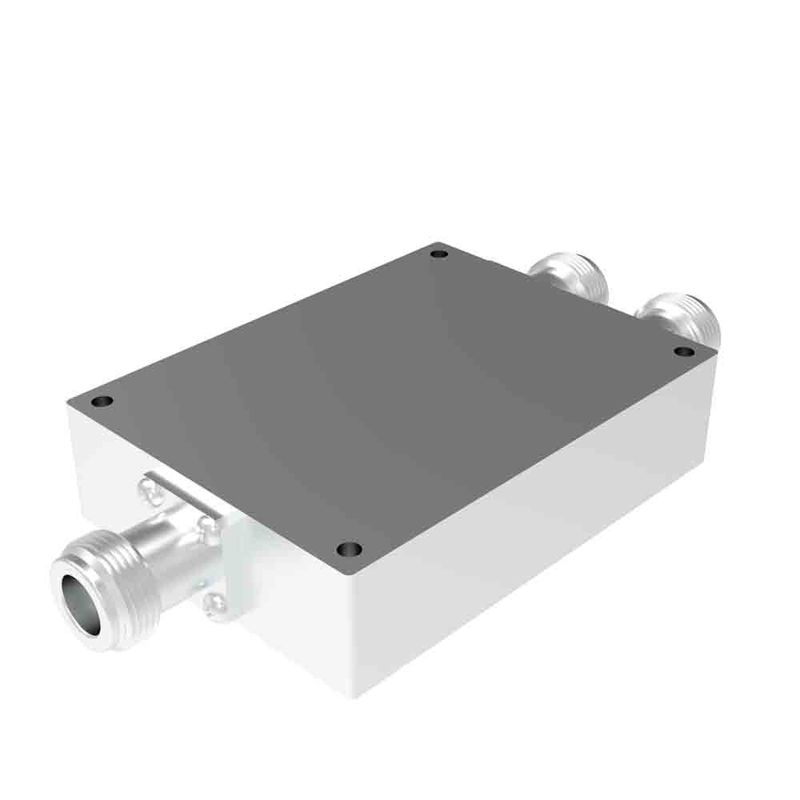

2 Way Wilkinson Antenna Power Divider 1000-4000MHz N Wanita

Name: 2 Way Wilkinson Antenna Power Divider 1000-4000MHz N Wanita
Brand: HeFei Vinncom Electronic Technology Co.,Ltd.
SKU: VN-PD-1000-4000-ON2
Price: 414.00 USD
Availability: InStock

Rincian Produk

Tempat asal: Cina

Nama merek: Vinncom

Sertifikasi: RoHS/ISO9000

Nomor model: VN-PD-1000-4000-ON2

Ketentuan Pembayaran & Pengiriman

Kuantitas min Order: 5pcs

Harga: negotiable

Kemasan rincian: busa+kotak

Waktu pengiriman: 2-4 minggu

Syarat-syarat pembayaran: T/T, Western Union

Menyediakan kemampuan: 50pcs per hari

Dapatkan Harga Terbaik

Hubungi sekarang

Spesifikasi

Deskripsi

Spesifikasi

Menyoroti:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                    4000MHz Antenna Power Divider, 2 Way Antenna Power Divider, 4000MHz Wilkinson splitter


Operating Frequency ( MHz ):	1000-4000	Impedance( Ohm ):	50
Input VSWR:	≤1.50	Output VSWR:	≤1.30
Insertion loss:	≤1.2	Average Power (Watt max.):	200W max. / 10W max. as combiner
Isolation(dB):	≥16	Amplitude Balance(dB):	±0.3
Phase Balance:	±4°	Operating Temperature( ℃ ):	-35 ~ + 75c

Operating Frequency ( MHz ):	1000-4000
Impedance( Ohm ):	50
Input VSWR:	≤1.50
Output VSWR:	≤1.30
Insertion loss:	≤1.2
Average Power (Watt max.):	200W max. / 10W max. as combiner
Isolation(dB):	≥16
Amplitude Balance(dB):	±0.3
Phase Balance:	±4°
Operating Temperature( ℃ ):	-35 ~ + 75c

Deskripsi

2 Way Wilkinson Antenna Power Divider 1000-4000MHz N Wanita

1000-4000MHz N Wanita 2 Way Power Divider/Combiner/Wilkinson Power Divider

Frekuensi pita lebar
Kurangnya Kerugian Penempatan
Isolasi tinggi

Nomor Bagian	VP-PD-1000-4000-ON2
Frekuensi operasi (MHz)	1000-4000
Impedansi (Ohm)	50
Input VSWR	≤1.50
Output VSWR	≤ 1.30
Kerugian penempatan	≤ 1.2
Daya rata-rata (Watt max.)	200W maksimum / 10W maksimum sebagai combiner
Isolasi (dB)	≥ 16
Amplitude Balance (dB)	±0.3
Keseimbangan Fase	±4°
Suhu operasi ((°C)	-35 ~ + 75c
Antarmuka	N Wanita
Ukuran	806024mm
Berat badan	220 g
Toleransi dimensi ((mm)	± 0.5
Pemasangan	4-Φ4,5mm lubang tembus
