698-2700MHz 2Way SMA Female Wilkinson Splitter Power Splitter
  • nama

698-2700MHz 2Way SMA Female Wilkinson Splitter Power Splitter

MOQ: 5 buah
harga: negotiable
Metode Pembayaran: D/A, L/C, D/P, T/T
Supply Capacity: 1500pcs per hari
Informasi Detail
Deskripsi Produk
Informasi Detail
Tempat asal
CINA
Nama merek
Vinncom
Sertifikasi
ROHS ISO9000
Nomor model
VN-PD-0727-SMA2
Frekuensi:
Pemisah Wilkinson Wanita SMA 2 Arah 698-2700MHz
Konektor:
SMA Perempuan
Warna:
Disesuaikan
OEM/ODM:
Dapat diterima
ROHS:
Kepatuhan
Deskripsi Produk

698-2700MHz 2Way SMA Female Wilkinson Splitter



  • Insertion Loss
  • Widely used for In-building Solutions
  • Indoor



  The Wilkinson Power Splitter is a fundamental passive radio-frequency (RF) component.

Its primary role is to split an input signal into two or more output signals with equal phase and amplitude,

while providing high isolation between the output ports. In mobile communications,

the Wilkinson Splitter is critical for efficiently distributing RF power across multiple

paths without degrading signal integrity.



Part Number VN-PD-0727-SMA2
Operating Frequency ( MHz ) 698-2700
Impedance ( Ohm ) 50
VSWR ≤1.25
Isolation(dB) 20
Split Loss (dB) ≤3.0
Insert loss(dB) ≤0.4
Application Indoor
Operating Temperature ( ℃ ) -40 ~ + 80
Interface SMA Female
Handling Power (Watt, max) IN to OUT 50W/0UT to IN 2W
Peak Power (Watt, max) 200

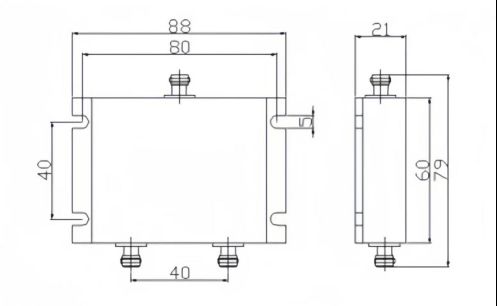

Dimension (mm)(L×W×H, excl connector) 80*40*21
ROHS Compliance Yes







                                            698-2700MHz 2Way SMA Female Wilkinson Splitter Power Splitter 0

Tag:

Power passing splitter,

Power pass splitter,

rf splitter udara
